Storage Engine Direction

Status: Accepted direction, with a proposed freshness spike.

CQLite should sit beside Cassandra as an analytical plane, not replace Cassandra’s internal storage engine. Cassandra remains the OLTP source of truth: it owns writes, commit log durability, memtables, flush, compaction, repair, and streaming. CQLite reads the durable SSTable substrate and exposes it to analytical systems such as Arrow Flight, Trino, and Iceberg.

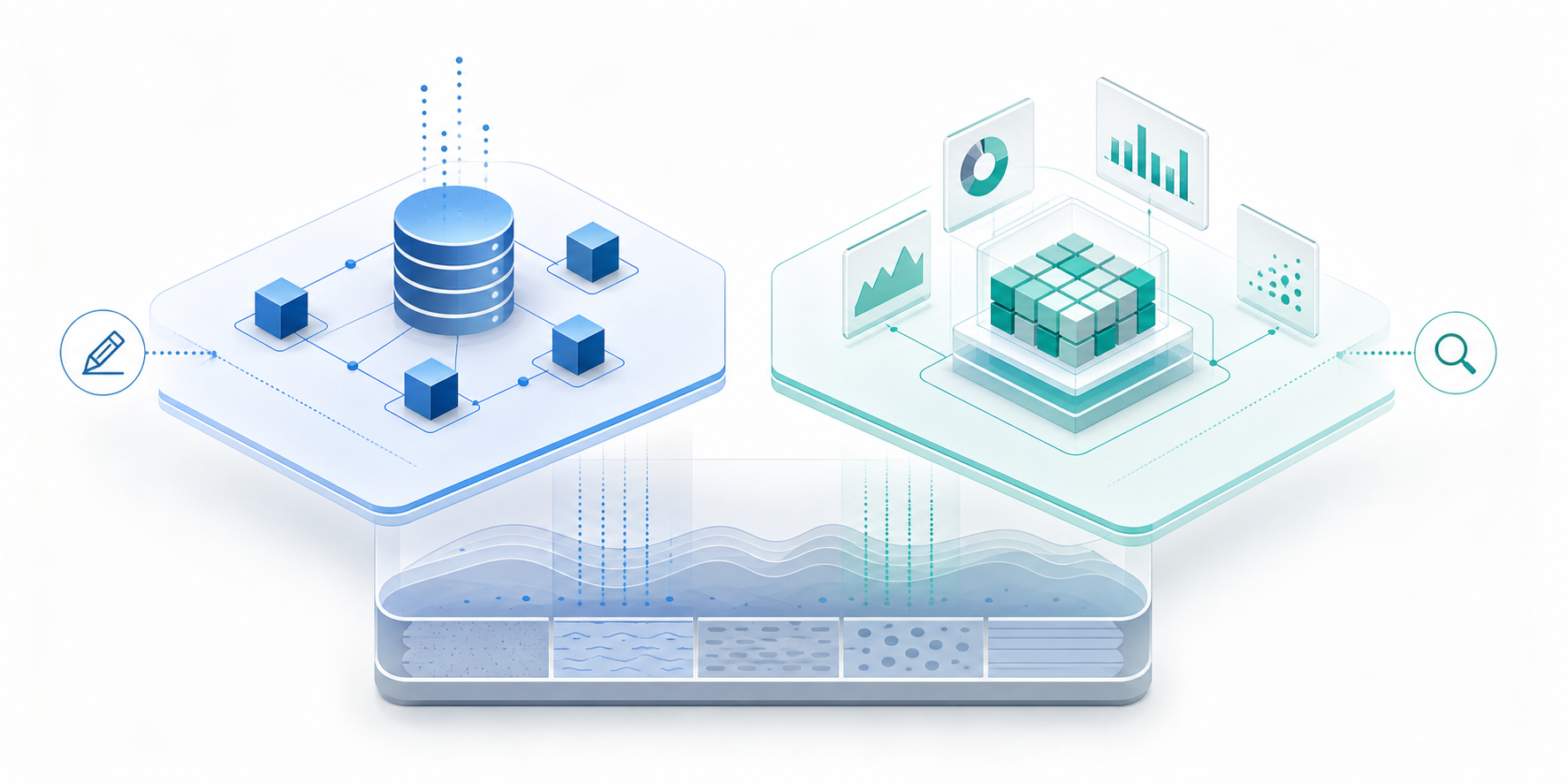

Abstract concept visual showing two parallel data-processing planes over a shared storage foundation. — Concept visual generated with Imagegen 2. Labels and technical details are rendered separately below so they remain exact.

Public summary

Adjacent, not replacement

Cassandra has no single storage-engine interface. The write-and-store pieces have useful seams, but read merge, lifecycle, streaming, and repair are not cleanly swappable.

Use CQLite's strengths

CQLite already understands Cassandra SSTables, serves Arrow Flight, supports Trino, exports Parquet, and can materialize lakehouse tables.

Close the freshness gap

The remaining gap is Cassandra’s unflushed memtable tail. The proposed spike exports that tail as real SSTable generations that CQLite can merge normally.

Architecture diagram

flowchart LR
  subgraph OLTP["Cassandra OLTP Plane"]
    direction TB
    App["Application reads/writes"]
    CommitLog["CommitLog + Memtable"]
    Lifecycle["Flush, compaction, repair"]
    App --> CommitLog --> Lifecycle
  end

  subgraph OLAP["Trino / Iceberg OLAP Plane"]
    direction TB
    ReadApp["Application analytical reads"]
    Query["Trino / Arrow Flight"]
    Iceberg["Iceberg materializer"]
    CQLite["CQLite SSTable reader"]
    ReadApp --> Query --> Iceberg --> CQLite
  end

  subgraph Foundation["SSTable Foundation"]
    direction TB
    Data["Data.db / Index.db<br/>Summary.db / Statistics.db"]
    Tail["Optional fresh tail gen-*"]
  end

  Lifecycle -->|flush creates durable SSTables| Data
  Data -->|snapshot read| CQLite
  CommitLog -. optional fresh tail export .-> Tail
  Tail -. fresh tail read .-> CQLite

Cassandra owns OLTP reads, writes, and lifecycle. OLAP applications enter through Trino, Arrow Flight, or Iceberg, and CQLite reads the shared SSTable foundation.

Mermaid source for the architecture diagram

flowchart LR
  subgraph OLTP["Cassandra OLTP Plane"]
    direction TB
    App["Application reads/writes"]
    CommitLog["CommitLog + Memtable"]
    Lifecycle["Flush, compaction, repair"]
    App --> CommitLog --> Lifecycle
  end

  subgraph OLAP["Trino / Iceberg OLAP Plane"]
    direction TB
    ReadApp["Application analytical reads"]
    Query["Trino / Arrow Flight"]
    Iceberg["Iceberg materializer"]
    CQLite["CQLite SSTable reader"]
    ReadApp --> Query --> Iceberg --> CQLite
  end

  subgraph Foundation["SSTable Foundation"]
    direction TB
    Data["Data.db / Index.db<br/>Summary.db / Statistics.db"]
    Tail["Optional fresh tail gen-*"]
  end

  Lifecycle -->|flush creates durable SSTables| Data
  Data -->|snapshot read| CQLite
  CommitLog -. optional fresh tail export .-> Tail
  Tail -. fresh tail read .-> CQLite

Data paths

flowchart TB
  subgraph Cold["Cold path"]
    direction LR
    ColdSST["Flushed SSTables"] --> ColdCQLite["CQLite"] --> ColdOut["Flight / Trino / Iceberg"]
  end

  subgraph Fresh["Fresh tail path"]
    direction LR
    FreshWrite["Cassandra write"] --> FreshTail["Tail gen-*"] --> FreshMerge["CQLite merge"]
  end

  subgraph Research["Research path"]
    direction LR
    Notes["Raw notes"] --> Proposal["Proposal"] --> Roadmap["Tasks + roadmap"]
  end

  ColdOut ~~~ FreshWrite
  FreshMerge ~~~ Notes

The proposal separates runtime data movement from how research is promoted into roadmap work.

Mermaid source for the data-path diagram

flowchart TB
  subgraph Cold["Cold path"]
    direction LR
    ColdSST["Flushed SSTables"] --> ColdCQLite["CQLite"] --> ColdOut["Flight / Trino / Iceberg"]
  end

  subgraph Fresh["Fresh tail path"]
    direction LR
    FreshWrite["Cassandra write"] --> FreshTail["Tail gen-*"] --> FreshMerge["CQLite merge"]
  end

  subgraph Research["Research path"]
    direction LR
    Notes["Raw notes"] --> Proposal["Proposal"] --> Roadmap["Tasks + roadmap"]
  end

  ColdOut ~~~ FreshWrite
  FreshMerge ~~~ Notes

Cold path

Flushed SSTables are the stable, already-shipped read path. CQLite discovers the table’s live generations, reads Cassandra components directly, performs normal last-write-wins reconciliation, and exposes the result through query and export surfaces.

Mermaid source for the cold path

flowchart LR
  SSTables["Flushed SSTables"] --> CQLite["CQLite"]
  CQLite --> Flight["Arrow Flight"]
  Flight --> Trino["Trino"]
  CQLite --> Iceberg["Iceberg materializer"]

Fresh tail path

Analytical reads do not see Cassandra’s unflushed memtable tail today. The proposed spike uses a Cassandra CEP-11 memtable plugin to export that live tail on demand as a real nb SSTable generation under a tail directory. CQLite then adds those gen-* paths to its normal source list and uses the existing merge engine unchanged.

Mermaid source for the fresh tail path

flowchart LR
  Write["Cassandra write"] --> Memtable["CqliteMemtable"]
  Memtable --> Tail["Tail gen-* SSTable"]
  Tail --> Merge["CQLite k-way LWW merge"]
  Merge --> Query["Flight / Trino query"]

Research path

The public page should not expose raw working notes as the main experience. Research moves from raw index notes to synthesis reports, then to proposal pages, then to implementation tasks and roadmap updates.

Mermaid source for the research path

flowchart LR
  Notes["Raw research notes"] --> Synthesis["Synthesis report"]
  Synthesis --> Proposal["Official proposal"]
  Proposal --> Tasks["Implementation tasks"]
  Tasks --> Roadmap["Roadmap"]

Decision map

Decision	Status	Rationale
CQLite as an adjacent analytical plane	Accepted direction	It uses the seams Cassandra already exposes and avoids a fork-only storage-engine replacement.
CEP-11 memtable tail export	Proposed spike	It targets the real freshness gap while preserving CQLite’s existing merge semantics.
Full Cassandra storage-engine replacement	Rejected for now	Read merge, lifecycle, repair, and streaming are hardwired around Cassandra’s internal objects.
CDC as the first spike path	Rejected for now	Earlier reports explored CDC, but the current spike direction is the memtable plugin path.
Live FFI reads from Cassandra into CQLite	Deferred	It may reduce export latency later, but it adds a larger runtime and crash-domain surface.
Counter-table freshness	Deferred	Counters do not reconcile by simple last-write-wins and are outside the first tail-merge scope.
Repair-aware deduplication	Deferred	The first pass is per-node analytical freshness, not cluster repair semantics.

Research sources

The website page is intentionally compact. The deeper source material lives in the repository:

Storage-engine feasibility The replacement-versus-adjacent analysis and the Cassandra seam inventory.

Memtable freshness The analysis of why flushed SSTables are visible but live memtables are not.

CEP-11 memtable plugin design The current spike design for exporting the live tail as real SSTable generations.

Primary source paths:

docs/storage engine/report-2-storage-engine-feasibility.md
docs/storage engine/report-1-memtable-freshness.md
docs/storage engine/memtable-plugin-design.md
docs/storage engine/proposal.md
docs/storage engine/design.md
